| Label printing is currently the field with the highest fineness of flexographic printing. Because it uses UV ink, when the temperature is relatively low and the ink is viscosity is high, if the roller surface and mesh wall are handled improperly, 'Flying Ink' will appear after the scraper. | |||||||||
Label printing is currently the field with the highest fineness of flexographic printing. Because it uses UV ink, when the temperature is relatively low and the ink is viscosity is high, if the roller surface and mesh wall are handled improperly, 'Flying Ink' will appear after the scraper. In addition, the number of lines of the label rollers is relatively high, and the mesh wall is relatively thin. The mesh walls of ordinary engraving technology are relatively brittle, which are prone to scratches and cuts under the action of a scraper. At the same time, high-fine printing puts high demands on the precise ink transfer effect of anilox rollers.

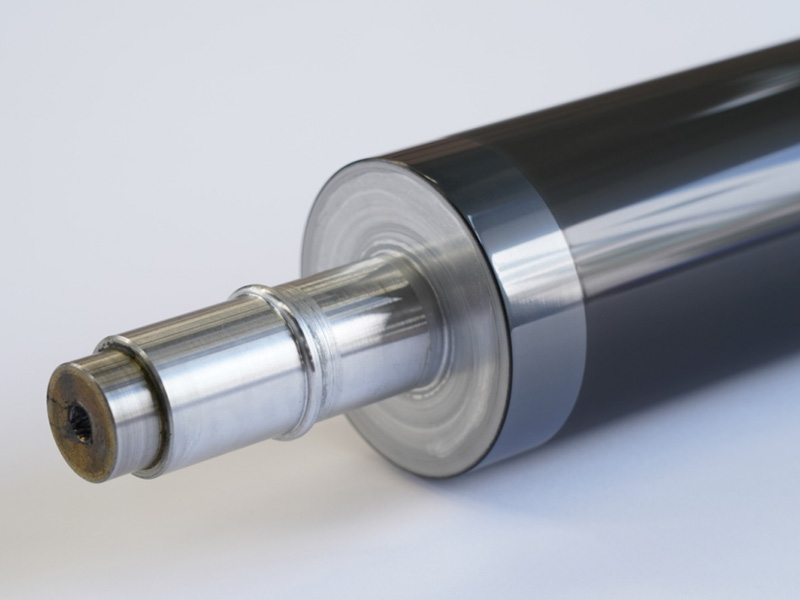

Advantages of ceramic label rollers
· Ultra-high network cable (100-1500LPI)
·Exquisite processing technology, more suitable for UV ink environment
· Strong adaptability to grayscale printing, smooth and delicate transition
· High-quality ceramic coating, unique mesh treatment, improve the scratch resistance of the roller surface, and maintain the leading level of international peers
·Even color expansion and high ink loading accuracy
Ceramic label roller parameters
| Diameter range: | 50-500mm |
| Maximum width: | 5000mm, with shaft 5000mm |
| Engraving angle: | Any angle such as 30°, 45°, 60° |
| Large network cable range: | The 50-1500 wires in the imperial system (metric system 20-500 wires) can be processed. |
| Screw shape: | Hexagonal, cross, bay manifold. |
| Main materials: | Special aluminum alloy substrate, fully imported ceramics. |
| Main processing equipment: | UK (ALE) fiber laser engraving machine, precision cylindrical grinder |
| Main testing equipment: | Imported net hole measuring instruments, thickness meters, hardness meters, etc. in the UK. |
| Precise craftsmanship: | The same parameter anilox roller δe < 1.5. |
Ceramic label roller application model
· GALLUS
· MARK ANDY
· GIDUE
· COMCO
· OMET
· NILPETER
· FOCUS
Application Cases
Zhejiang Zhongte Machinery, Zhejiang Hongsheng Machinery,
